SharpPlot 2.20: ClockFace scaling is used on Polar charts

Reference > Style examples > ClockFace scaling is used on Polar charts

ClockFace scaling is used on Polar charts

This style will force the polar chart to treat all x-values as times from 0:00 to 23:11. This applies to data and to tickmark settings, so that the example can be drawn with an XTick setting of (4,3) here.

sp.PolarChartStyle = PolarChartStyles.ClockFace;

Values above 24 are accepted, and simply wrap around.

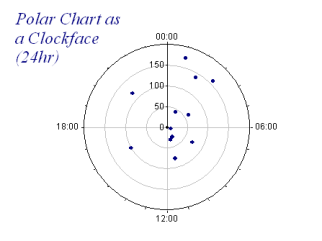

ClockFace scaling is used on Polar charts

See also ...
